JENOPTIK GRYPHAX®系列:提高您的显微镜工作站的效率

业纳的JENOPTIK GRYPHAX®系列提供最先进的USB 3.0显微镜照相机,包括直观的显微镜照相机软件。

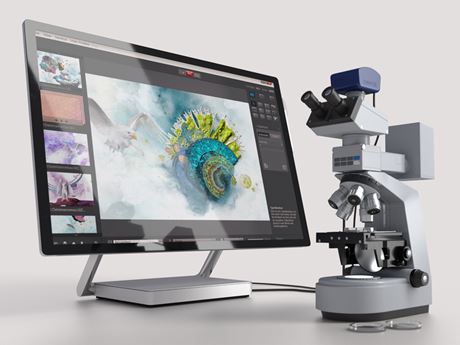

业纳JENOPTIKGRYPHAX®系列使您能够将您的显微镜优化为最先进的数字工作站。节省时间!

JENOPTIK GRYPHAX®显微镜照相机软件将随相机附赠。您无需事先了解您的WINMACLinux操作系统,即可直观地安装该极为易于使用的软件。所有照相机以视频速度输出实时图像,从而方便您的日常工作。

可靠的业纳图像质量与尖端CMOS技术相结合

业纳的JENOPTIKGRYPHAX®系列显微镜照相机配以最新的CMOS术。较短的曝光时间和较高的图像刷新率使系统能帮助节省时间且便于使用。这意味着即使是移动物体您也可以轻松而快速地定位和对焦。

得益于采用C接口,JENOPTIKGRYPHAX®产品易于与任何品牌的显微镜一起使用。无论您的操作系统是WINMAC还是Linux该软件始终提供相同的用户界面。

JENOPTIK GRYPHAX® 软件可免费升级您可灵活使用并始终使用最新软件。

想增加显微镜照相机的灵活性和应用范围?请使用我们的DijSDK,以在最短时间内嵌入我们的JENOPTIKGRYPHAX® 照相机产品。

JENOPTIK GRYPHAX® - Back illuminated color cameras

PROKYON

Your superior solution for Life & Medical, Material & Manufacturing and fluorescence application.
Display your moving samples with up to 120 frames per second. Capture your samples in real measured color with up to 21 MPix resolution.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the PROKYON delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX PROKYON is the successor of all ProgRes microscanning cameras, like C14plus.

Benefits

  • High image quality: With 2 | 9 | 21 MPix, Pixel size 5.86 x 5.86µm, Real measured color, Dynamic range 73 dB, Cooling.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain, DirectX and 3rd party device support for PRIOR stages.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, 120 fps at full HD, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚫ Frame Rate
    ⚫⚫⚫⚫ Resolution

  • Recommended Applications
    ⚫⚫⚫⚫ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚫⚫ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚫ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚫⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚫ Pol

产品信息

NAOS

Your exclusive solution for Life & Medical, Material & Manufacturing application.
Display your specimens with up to 30 frames per second at 5 MPix. Capture your specimens with up to 20 MPix resolution.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the NAOS delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX NAOS replaces all ProgRes 5 MPix CCD cameras like, SpeedXTcore5.

Benefits

  • High image quality: With 2 | 5 | 20 MPix, aspect ratio 3:2, Reliable colors based on real measured color, Dynamic range 72 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1" Sony back-illuminated sensor, 30 fps at 5 MPix.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚫ Sensor Size
    ⚫⚫⚪⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚫⚫⚫ Resolution

  • Recommended Applications
    ⚫⚫⚫⚫ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚫⚫ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚪⚪⚪⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚪⚪ DF
    ⚫⚪⚪⚪ DIC
    ⚫⚫⚪⚪ Ph
    ⚫⚫⚫⚪ Pol

产品信息

ARKTUR

Your recomended solution Life & Medical Science, Material & Manufacturing application.
Display 30 frames per second at 4k resolution and the largest possible field of view at the monitor.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the ARKTUR delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX ARKTUR replaces all ProgRes 3 MPix CCD cameras like, SpeedXTcore3.

Benefits

  • High image quality: With 2 | 4 | 8 Mpix, 4k, Reliable colors based on real measured color.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 2/3" Sony back-illuminated sensor, 30 fps at 4k (8 MPix).
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚪⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚫⚫⚪ Resolution

  • Recommended Applications
    ⚫⚫⚫⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚫⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚪⚪⚪⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚪⚪ DF
    ⚫⚪⚪⚪ DIC
    ⚫⚫⚪⚪ Ph
    ⚫⚫⚫⚪ Pol

产品信息

KAPELLA

Your exclusive solution for live cell and fluorescence application.
Display and capture your moving specimens with up to 120 frames per second.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the KAPELLA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX KAPELLA replaces all cooled ProgRes 1.4 MPix CCD color cameras, like ProgRes CFcool.

Benefits

  • High image quality: With Pixel size 5.86 x 5.86 µm, Reliable colors based on real measured color, Dynamic range 73.3 dB, Cooling.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, 120 fps at full HD, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚫ Frame Rate
    ⚫⚪⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚪⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚪⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚫ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚫⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚫ Pol

产品信息

SUBRA

Your recomended solution for live cell and fluorescence application.
Display and capture your moving specimens with up to 30 frames per second.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the SUBRA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX SUBRA replaces all ProgRes 1.4 MPix CCD color cameras, like ProgRes CF.

Benefits

  • High image quality: With Pixel size 5.86 x 5.86 µm, Reliable colors based on real measured color, Dynamic range 67 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚪⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚪⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚪⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚫⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚫ Pol

产品信息

ALTAIR - Cost efficient with 3 & 12 MPix

AVIOR - Cost efficient with 2 & 8 MPix I 4K

Your superior solution for educations.
Basic solution Life & Medical Science, Material & Manufacturing. Display your samples at 4k resolution at the monitor.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the AVIOR delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX AVIOR is the successor of ProgRes CT3.

Benefits

  • High image quality: With 2 | 8 MPix, 4k, Reliable colors based on real measured color.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚪⚪⚪ Sensor Size
    ⚫⚪⚪⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚫⚫⚪ Resolution

  • Recommended Applications
    ⚪⚪⚪⚪ Life & Medical Science
    ⚫⚫⚫⚪ Education Life & Medical Science
    ⚪⚪⚪⚪ Material & Manufacturing
    ⚫⚫⚫⚪ Education Material & Manufacturing
    ⚪⚪⚪⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚪⚪⚪ DF
    ⚫⚪⚪⚪ DIC
    ⚫⚪⚪⚪ Ph
    ⚫⚪⚪⚪ Pol

Product-Information

JENOPTIK GRYPHAX® - Back illuminated monochrome cameras

POLARIS - The flagship | Monochrome

Your superior solution for fluorescence application.
Capture with the highest possible dynamic range and the most sensetive camera in the entiere portfolio.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the POLARIS delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

Benefits

  • High image quality: With a square, Pixel size 7.2 x 7.2 µm, Aspect ratio 1:1, Dynamic range 77 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free JENOPTIK GRYPHAX® microscope camera software.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚫ Sensitivity
    ⚫⚫⚪⚪ Frame Rate
    ⚫⚫⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚫⚫ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚫⚫ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚫ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚫ DF
    ⚫⚫⚫⚪ DIC
    ⚫⚫⚫⚫ Ph
    ⚫⚫⚫⚫ Pol

Product-Information

RIGEL

Your exclusive solution for monochrome fluorescenceapplication.
Display up to 120 frames per second in low light.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the RIGEL delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX RIGEL is the successor of ProgRes 1.4 MPix CCD monochrome cameras, like MFcool.

Benefits

  • High image quality: With Pixel size 5.86 x 5.86 µm, Dynamic range 73 dB, Cooling.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free GRYPHAX® microscope camera software,1/1.2" Sony back-illuminated sensor, 120 fps at Full HD, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚫ Frame Rate
    ⚫⚪⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚪⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚪⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚫ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚫ DF
    ⚫⚫⚫⚪ DIC
    ⚫⚫⚫⚫ Ph
    ⚫⚫⚫⚫ Pol

产品信息

WEGA - Full HD solution | Monochrome

Your advanced solution for monochrome fluorescence application.
Display up to 30 frames per second in low light.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the WEGA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

JENOPTIK GRYPHAX WEGA is the successor of all ProgRes 1.4 MPix CCD monochrome cameras, like MF.

Benefits

  • High image quality: With Pixel size 5.86 x 5.86 µm, Dynamic range 69 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free GRYPHAX® microscope camera software,1/1.2" Sony back-illuminated sensor, Global shutter.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚫⚫⚪ Sensor Size
    ⚫⚫⚫⚪ Sensitivity
    ⚫⚫⚫⚪ Frame Rate
    ⚫⚪⚪⚪ Resolution

  • Recommended Applications
    ⚫⚫⚪⚪ Life & Medical Science
    ⚪⚪⚪⚪ Education Life & Medical Science
    ⚫⚫⚪⚪ Material & Manufacturing
    ⚪⚪⚪⚪ Education Material & Manufacturing
    ⚫⚫⚫⚪ Fluorescence
    ⚪⚪⚪⚪ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚫⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚫ Pol

Product-Information

BETRIA - Cost efficient | Monochrome

Your superior education solution for fluorescence application.

Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the BETRIA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.

Saves your time!

Benefits

  • High image quality: With Aspect ratio 4:3, Dynamic range 65 dB.
  • Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
  • Ease of use: Free GRYPHAX® microscope camera software.
  • Stability: Made in Germany, 24 month warranty and software updates free of charge.
  • Camera properties
    ⚫⚪⚪⚪ Sensor Size
    ⚫⚫⚪⚪ Sensitivity
    ⚫⚫⚪⚪ Frame Rate
    ⚫⚫⚪⚪ Resolution

  • Recommended Applications
    ⚪⚪⚪⚪ Life & Medical Science
    ⚫⚫⚪⚪ Education Life & Medical Science
    ⚪⚪⚪⚪ Material & Manufacturing
    ⚫⚫⚪⚪ Education Material & Manufacturing
    ⚪⚪⚪⚪ Fluorescence
    ⚫⚫⚫⚫ Education Fluorescence

  • Contrast techniques
    ⚫⚫⚫⚫ BF
    ⚫⚫⚫⚪ DF
    ⚫⚪⚪⚪ DIC
    ⚫⚫⚫⚪ Ph
    ⚫⚫⚫⚪ Pol

Product-Information

JENOPTIK GRYPHAX® - Software, tutorial, documentation & application

Software benefits & Features

Remarkable benefits of JENOPTIK GRYPHAX® at a glance

What makes your daily work efficient? Time saving and ease of use workflows with premium quality products made in Germany.

JENOPTIK GRYPHAX® software is workflow optimized ease to use and offers the relevant microscopy features. For those who want to enjoy flexibility, and more functionality drivers like TWAIN, DirectX®, open source microscopy software like µmanager and others are available.

  • Ease of use
    - Automatic, fast exposure control
    - Live-image optimized: ocular view - adapt color impressions from ocular to the images
    - Image comparison (side by side)
    - Video recording

  • High image quality
    - Jenoptik color interpolation based on real measured color
    - Measured data based on EMVA 1288 guidelines
    - Real time image enhancements @ live

  • Stability
    - Device configuration - to define multiple microscope settings
    - User profile for excellent, reproducible image results
    - Software and updates free of charge
    - Each release is certified tested

  • Versatility
    - Research life with fluorescence tool
    - Examine elements with panorama & z-stacking tool
    - Evaluate quality with measurement tool
    - Reveal truths with true color know-how

JENOPTIK GRYPHAX® software features

Software download & Video tutorials

JENOPTIK GRYPHAX® software is workflow optimized ease to use and offer the relevant microscopy features.
Watch our video tutorials and learn more about the remarkable features like panorama function.

The JENOPTIK GRYPHAX® Software package is included in the scope of delivery.
Registered users may download the current version as well as more recent updates without charge.

Efficient!

Our video tutorials:

JENOPTIK GRYPHAX - 1 - Introduction of GUI
JENOPTIK GRYPHAX - 2 - Preferences
JENOPTIK GRYPHAX - 3 - Device Configuration and Status Bar
JENOPTIK GRYPHAX - 4 - Image Settings
JENOPTIK GRYPHAX - 5 - The Gallery

Remarkable software feature

JENOPTIK GRYPHAX - 6 - Side By Side tool
JENOPTIK GRYPHAX - 7 - Multi Fluorescence tool
JENOPTIK GRYPHAX - 8 - Automatic Panorama tool
JENOPTIK GRYPHAX - 9 - The Automatic Z-stacking tool
JENOPTIK GRYPHAX - 10 - Measurement tool
JENOPTIK GRYPHAX - 11 - Video tool

Quick start & General instruction

What makes your daily work efficient?
Time saving and ease of use workflows with premium quality products made in Germany.

The guideline for your quick start with your JENOPTIK GRYPHAX® microscope camera below.

Timesaving!

产品信息

JENOPTIK GRYPHAX® cameras are predestined for your application in

  • Life & medical science
    - Pathology
    - Cell biology
    - Oncology
    - Neuroscience
    - Entomology
    - Plant Biology
    - Dentistry
    - Fluorescence
    - Cell culture
    - Ophthalmology
    - and more…

  • Material science
    - Geology & environmental science
    - Sample preparation
    - Art conservation and natural resource science
    - and more…

  • Industry & manufacturing
    - Medical device production
    - Automotive & transportation
    - Quality control
    - Metals & machine engineering
    - Watch making industry
    - Semiconductor & microelectronics
    - Manufacturing
    - and more…

  • Education
    - Life science
    - Earth science
    - Material science Forensic

They capture confident and reliable your daily work with real measured colors.

Confident!

探索微观领域™

优势:

  • 图像质量高:业纳专业的图像质量——基于真彩方面的专业知识和完美的色彩再现,通过使用光谱测量的传感器而获得。
  • 通用性:WINMACLinux兼容的跨平台,在WinMACLinux平台采用相同的图形用户接口(GUI),适用于所有显微镜品牌,免费提供软件开发工具包(SDK)和第三方软件支持。
  • 易用性:便于使用的直观的显微镜照相机软件,优化的工作流程,实时图像优化——所有功能实时和始终如一,完美适用于显微镜的传感器,省时,易于安装。
  • 稳定性:USB 3.0摄像头接口,安全投资:长久可靠的硬件,长期的软件支持和操作系统的兼容性。

应用领域:

  • 生命科学:医学、病理学、血液学、细胞学、遗传学、生物学和化学
  • 质量控制:颗粒分析、焊缝测试和控制制造过程
  • 材料科学:矿物学和金相学——用于确定结构,定量和定性的样品分析和记录
  • 证:妥善保管证据、文件审查和法医



你有什么问题吗?请与我们联系咨询。

Chris Zhu

Sales | Biophotonics(生物医疗方向)

+86 186 1609 2458

Stefan Seidlein

Stefan Seidlein

Product Manager

+49 173 5642 327

个人信息

Salutation

您的疑问

* 为必填字段,请填写
