适用于冲压工件光学检测的测试站

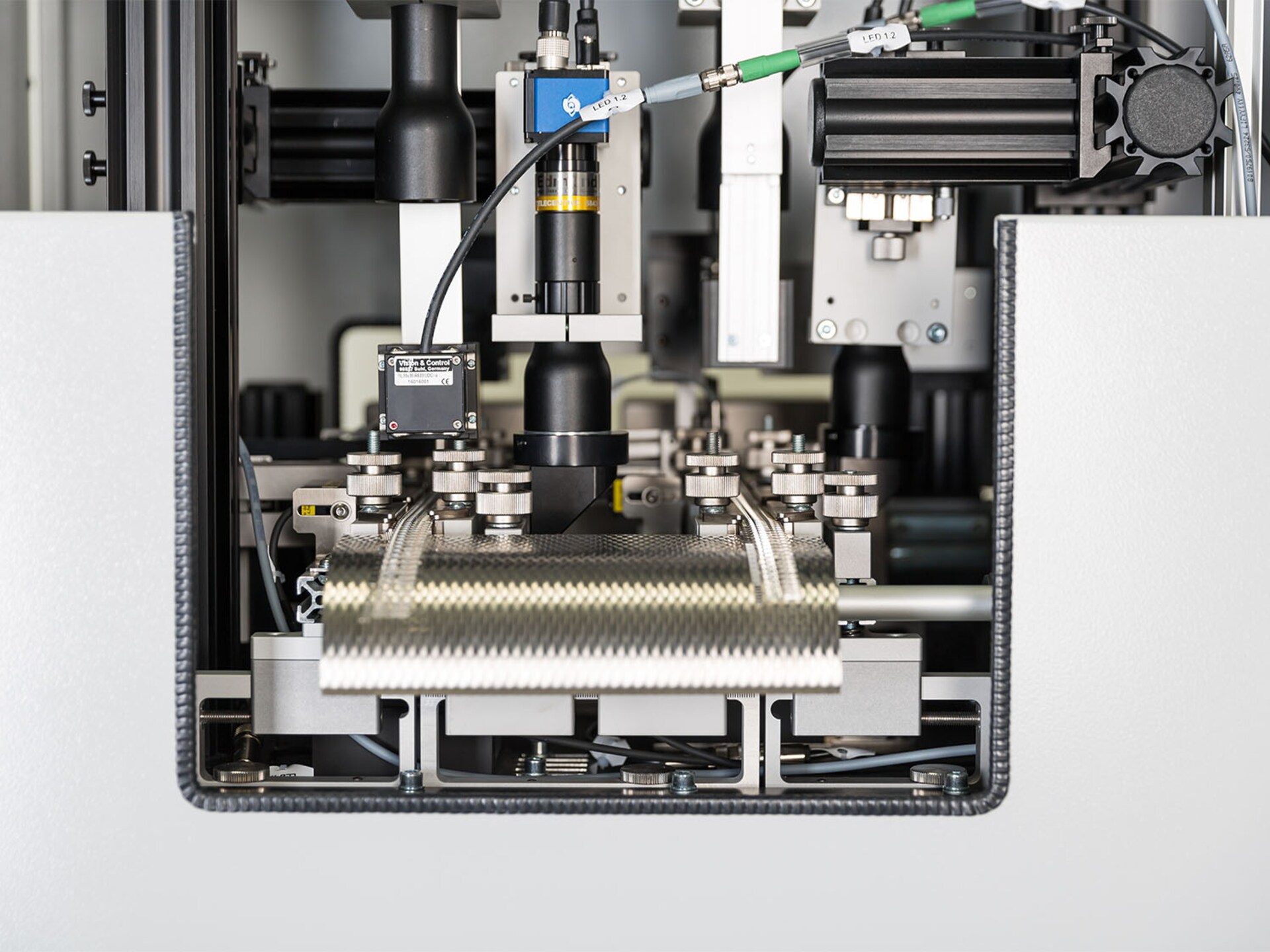

使用我们的检测站
在冲压工件的生产中,人们对效率和成本结构的要求大幅升高。冲压工件的生产者需要寻求具有足够竞争力的解决方案 - 实现零缺陷生产,即使这会增加僧璨加工过程的复杂程度。
PSS测试站是冲压生产在线检测领域的革新者,即从传统的冲压工件抽样检测转变为对冲压工件集全自动在线检查、测量和分选于一体的质量控制整体化方案。
从首个冲程开始,监测站对每一个加工工件检测结果的实时交付和处理,大幅缩短了更换不同的加工生产线所需要的工作流程,显著提高了生产效率。

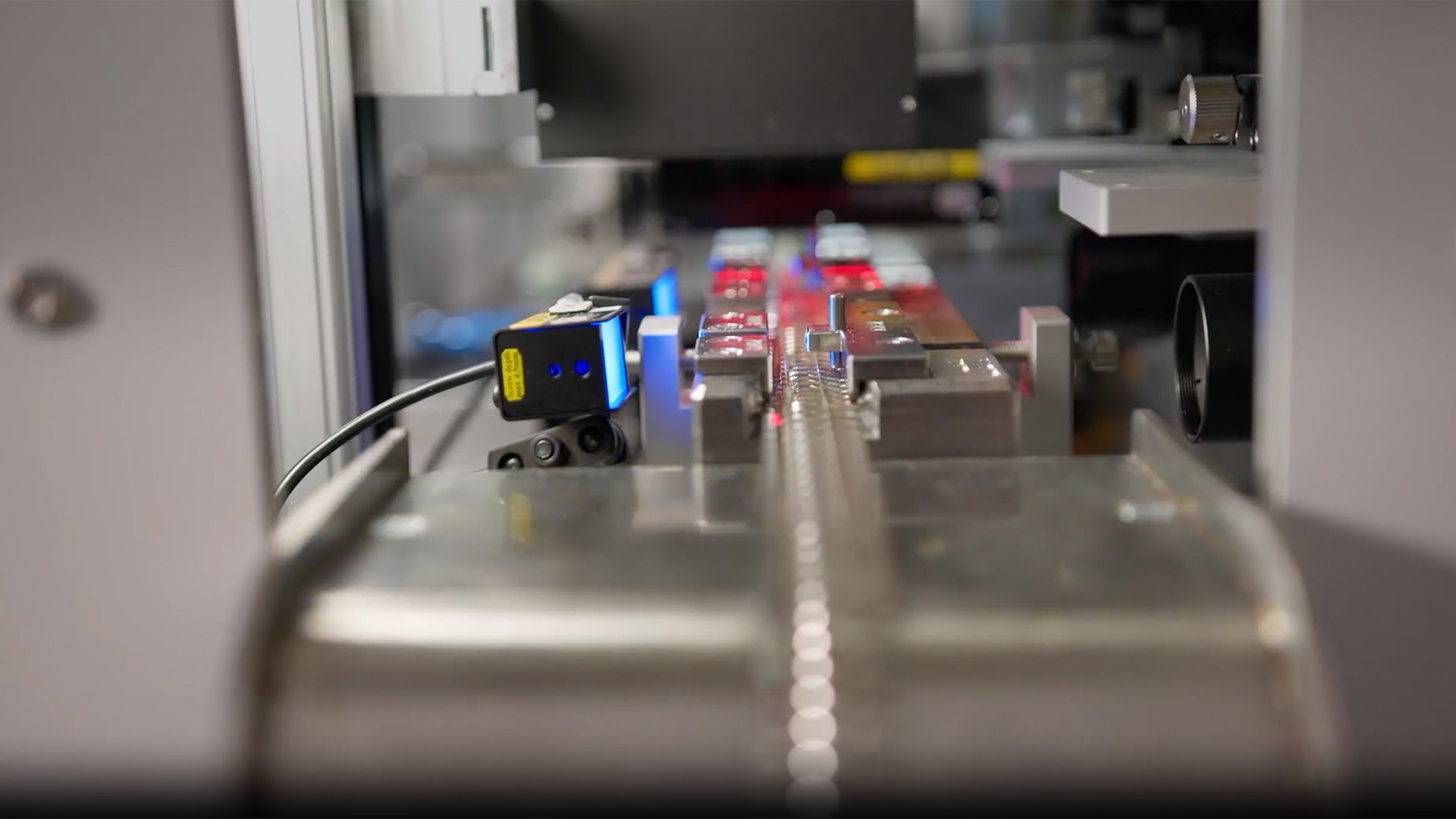

Our latest test station for punch strips of the PSS-40 series
The test and sorting station PSS-40 with laser cutting / laser welding is a further development of our standard test station PSS-40, which is already established on the market. Our product enhancement replaces the manual or semi-automatic process of mechanical cutting and subsequent joining with a fully automated laser cutting and welding process.
Benefits at a glance
- Uninterrupted production of stamped strips with 100% quality
- No press stops for sporadic missing parts, waste, welding of raw material
- Space-saving stamping line configuration, no additional strip welding device
- Fully automated production, saves resources and time

Special features LCLW
- Fully automatic tensile test after each weld
- Cutting out of first strips section for tool setup
- Cutting of strip sections or individual parts in the process
- Free of choice cutting/welding positions and cutting geometries
- Processing of multiple connections
- OVIS Inspect software with fully integrated laser configuration
Wear-free 24/7 sorting function of bad parts
- No wear and tear - Unlike mechanical cutting tools, a laser does not wear out
- High flexibility - No complex tool changes, simple flexible grippers
- Reduced changeover times

检测站概览

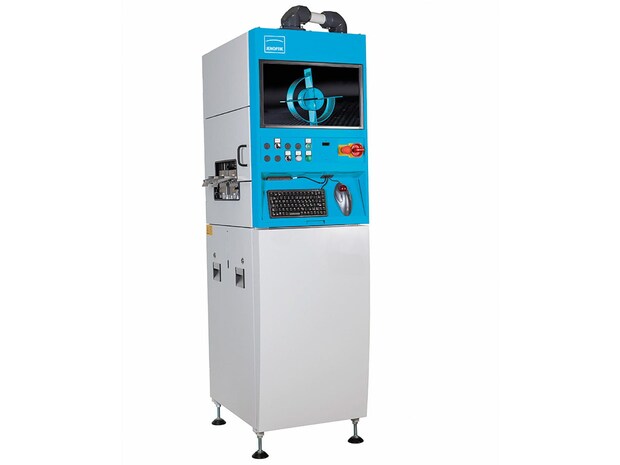

PSS-40/S

- 组装集成度高且节约空间
- 一般使用 2-3 个拍照相机
- 可替换的承载平台
- 可根据生产进料方向决定操作区域的位置

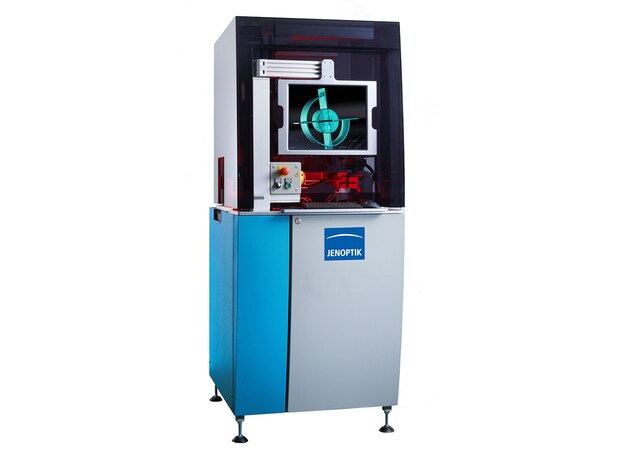

PSS-40/MH

- 能够容纳至少 4 个拍照相机的空间结构
- 从侧面可更换的承载平台
- 保护罩上下抬升和放下
- 更换平台的安装和更换方便快捷
- 铰接的操作区域
- 铰接的带料驱动机构

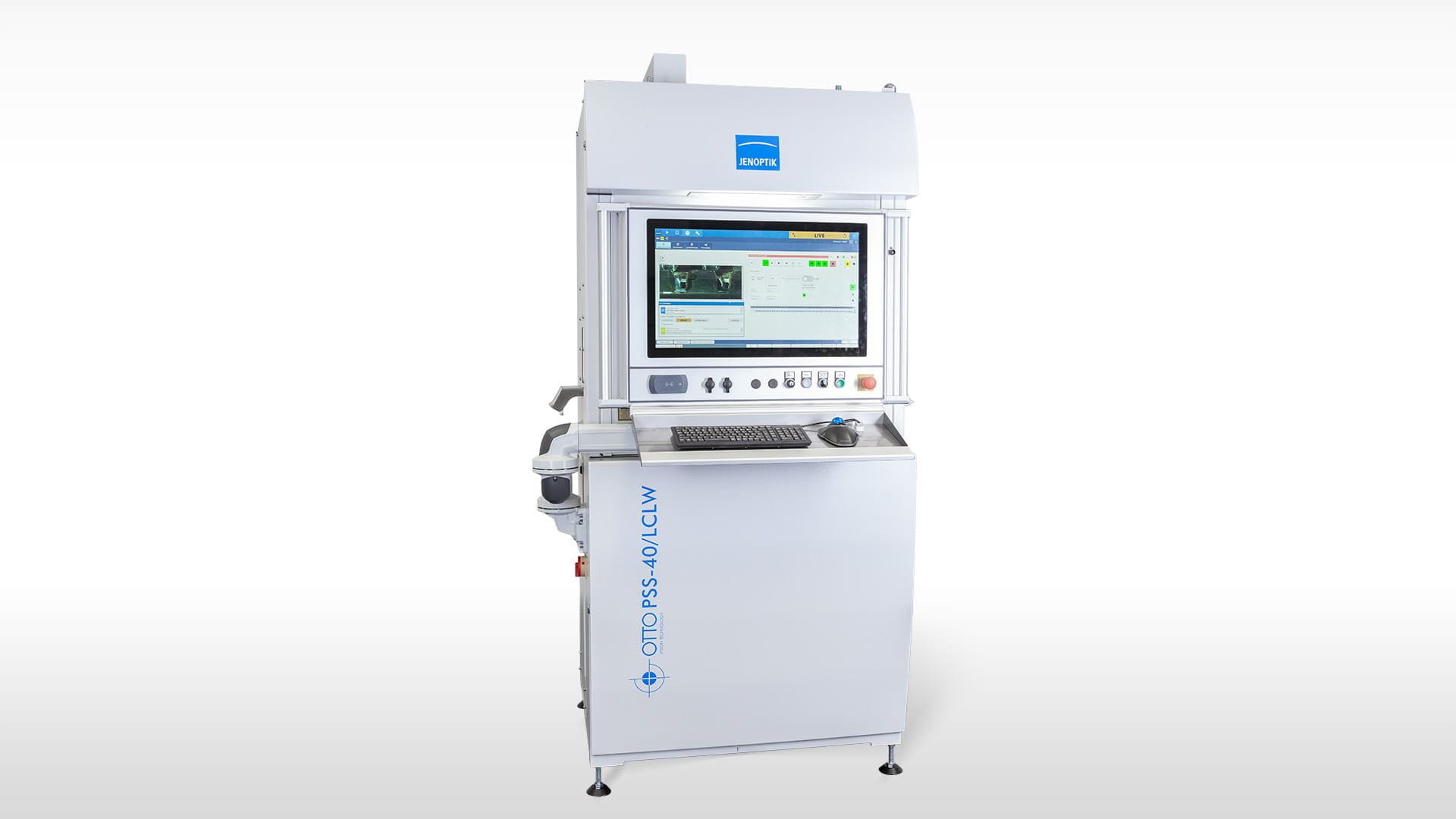

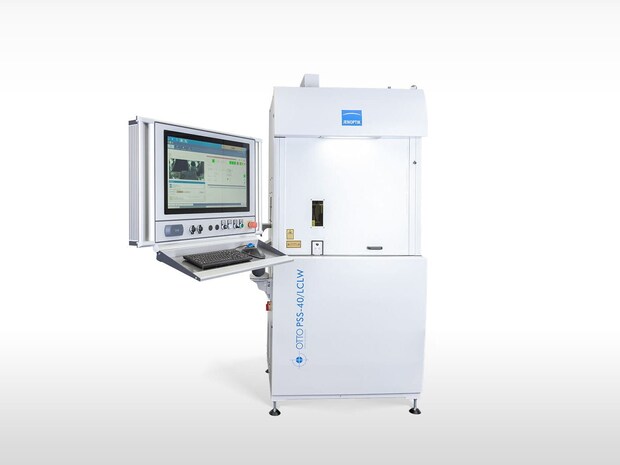

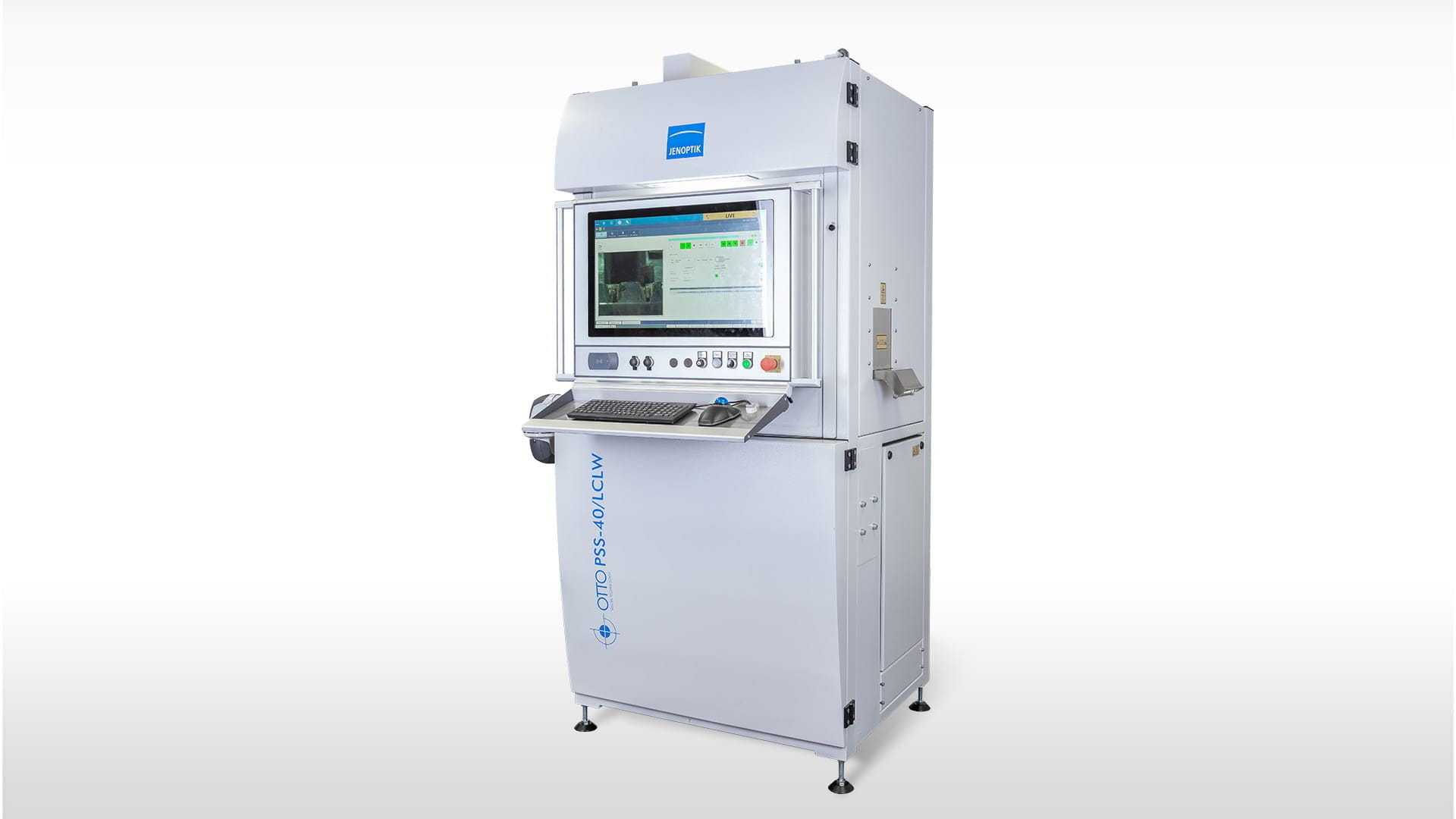

PSS-40/LCLW

- High-speed inspection
- Laser cutting
- Laser welding
- 3-4 cameras
- LCLW pure for use with existing PSS-40 test stations
PSS-40/LCLW

找到适合您使用需求的检测站
以落料方式生产的冲压工件的检测和分拣

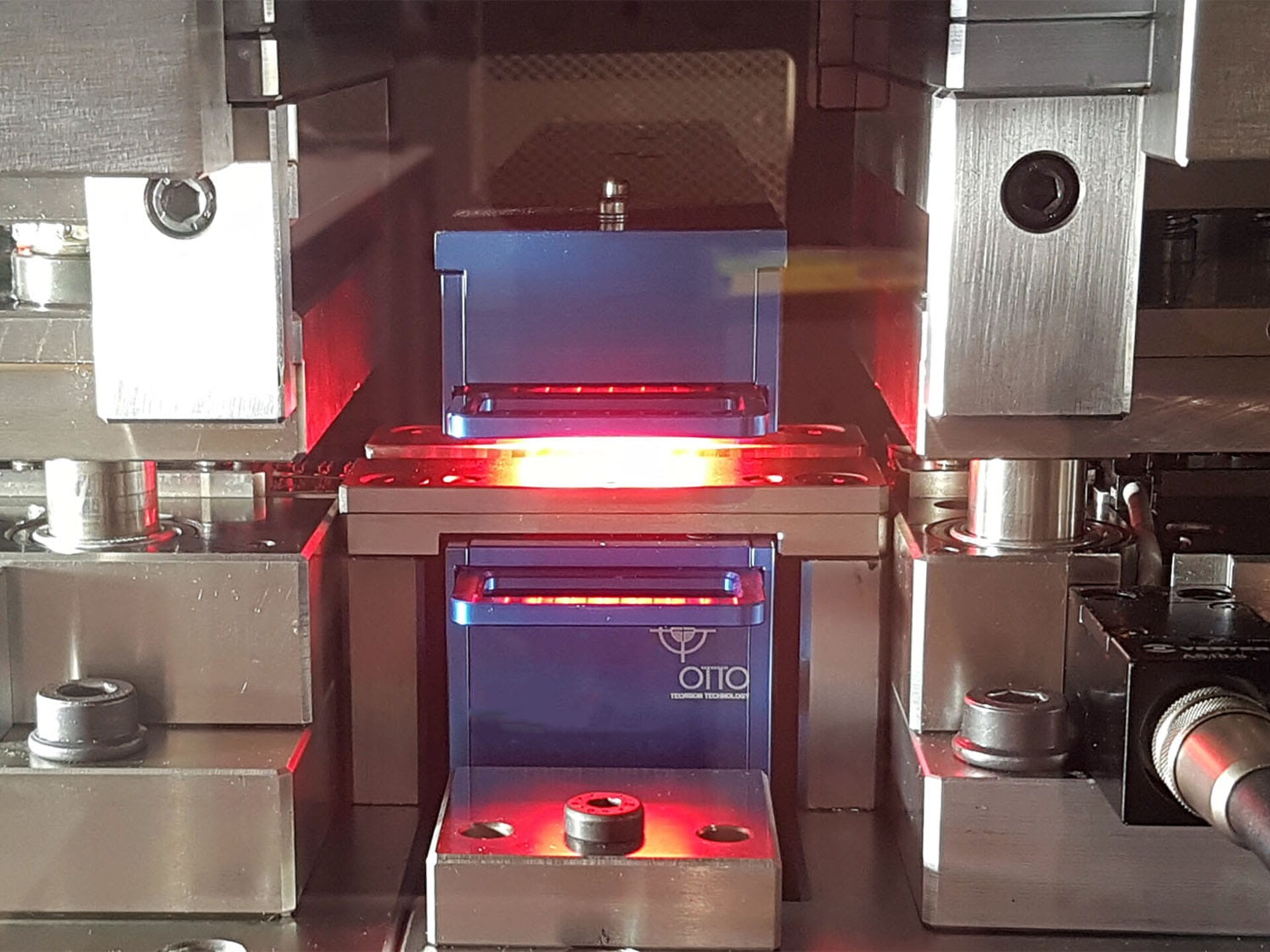

用于检测的In-Die模块
针对冲压生产过程中以落料件形式进行作业的应用场景,我们为您提供的冲压工件 100% 在线全检解决方案将会使用直接模内检测。
In-Die模块的优势
- 高精度测量、焊接点控制、表面检测
- 与“传统的检测技术”相比,大幅降低生产成本
- 高精度检测,速度高于 2000 冲程/分钟
- 模块化的单相机系统高度节省空间(生产方向上占用的长度小于60mm)
- PSS-40 图片处理系统
- 根据不同的模内空间进行合理的多模块布局
- 每个相机模块可以分别考虑需要使用的相机个数
- 垂直照明和透射光的灵活应用场景
- 使用PLC控制分拣站(可选)
冲压带料的检查和分拣 - PSS-40系列
PSS-40/S | PSS-40/MH | PSS-40/LCLW or LCLW pure | |
---|---|---|---|
宽 | 550mm | 810mm | 1250mm |
深 | 900mm | 1000mm | 1290mm |
高 | < 2.100 mm | 1920 - 2700mm | 2230mm (2250mm with open lift door) |
带有适当配置检测站全系列在欧洲、亚洲及美洲地区都可供使用。
电镀行业中的冲压带料和原料带

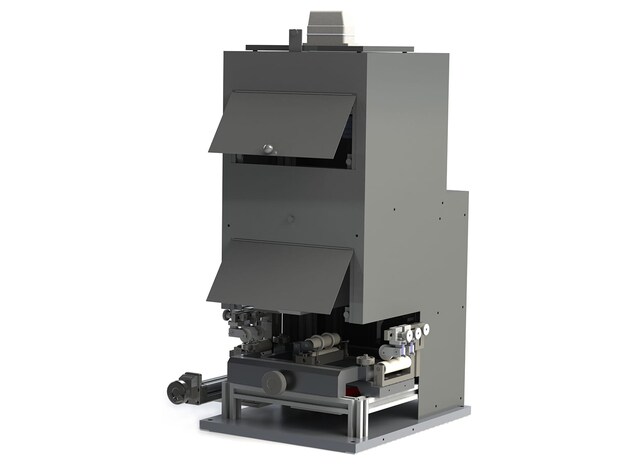

在电镀工业中使用PSS-40检测站
- 便捷地与电镀生产线集成在一起
- 使用辊轮进行带料输送
- 使用PLC进行废品的追踪
- 在电镀工艺和双金属生产中的应用
- 使用标准化的图像处理软件
- 尺寸检测
- 表面检测
- 使用应匹配的照明方式配合黑白和彩色的拍照相机的拍照
